Mapping Performance Analyzer tasks to the back end Database

How does the tasks in ITPA map to OS Agent attribute.

In other words - where does the ITPA look for in the Database - to get the data and render this.

Here,I will try to delve into just 1 attribute of the UNIX agent - i.e Unix_Memory, and one ITPA task "Available Memory' and connected to DB2 data base.






Requirements : Historical collections for UNIX agent has to be configured first.
Next, the Summarization and Pruning for the Unix Attribute has to be configured.
The UNIX agent has these columns for "Available Memory ".

If you look at the DB2 Database, and the Historical colleciton for the UnixOS agent is configured and active.


Unix_Memory                     ITMUSER         T     2013-06-26-12.19.15.589568
Unix_Memory_D                   ITMUSER         T     2013-06-26-12.20.50.073287
Unix_Memory_DV                  ITMUSER         V     2013-06-26-12.20.53.727654
Unix_Memory_H                   ITMUSER         T     2013-06-26-12.20.45.292147
Unix_Memory_HV                  ITMUSER         V     2013-06-26-12.20.49.760437
Unix_Memory_W                   ITMUSER         T     2013-06-26-12.20.54.066615
Unix_Memory_WV                  ITMUSER         V     2013-06-26-12.20.58.156429


Unix Memory_D means the daily sumarization is configured.
_H and _W - are the Hourly and the Weekly.

// lists all the records.
select count(*) from itmuser."Unix_Memory"  <== typically will have  245 records for example.

// lists summarized data.
Summarized data:
select count(*) from itmuser."Unix_Memory_D" <== will have 2 - since we have had daily - and its two days since the agent was started.

select count(*) from itmuser."Unix_Memory_H" <== will have based on the hours - for 2 hours it will have 7 or 8 entries.
7 <========= This is what we will focus in this blog.

Since we have set the ITPA task to forecast based on the Hourly - the TEP GUI will show 7 entries. ( and it has been close to 2 hours since I started monitoring the agent.
and at 15 minutes each, there will be 7 summarized entries)



describe table itmuser."Unix_Memory"

                                Data type                     Column
Column name                     schema    Data type name      Length     Scale Nulls
------------------------------- --------- ------------------- ---------- ----- ------
TMZDIFF                         SYSIBM    INTEGER                      4     0 No
WRITETIME                       SYSIBM    CHARACTER                   16     0 No
System_Name                     SYSIBM    VARCHAR                     64     0 No
Timestamp                       SYSIBM    CHARACTER                   16     0 Yes
Total_Virtual_Storage_MB        SYSIBM    INTEGER                      4     0 Yes
Used_Virtual_Storage_MB         SYSIBM    INTEGER                      4     0 Yes
Avail_Virtual_Storage_MB        SYSIBM    INTEGER                      4     0 Yes
Virtual_Storage_Pct_Used        SYSIBM    DECIMAL                     31     1 Yes
Virtual_Storage_Pct_Avail       SYSIBM    DECIMAL                     31     1 Yes
Total_Swap_Space_MB             SYSIBM    INTEGER                      4     0 Yes
Used_Swap_Space_MB              SYSIBM    INTEGER                      4     0 Yes
Avail_Swap_Space_MB             SYSIBM    INTEGER                      4     0 Yes
Used_Swap_Space_Pct             SYSIBM    DECIMAL                     31     1 Yes
Avail_Swap_Space_Pct            SYSIBM    DECIMAL                     31     1 Yes
Total_Real_Mem_MB               SYSIBM    INTEGER                      4     0 Yes
Used_Real_Mem_MB                SYSIBM    INTEGER                      4     0 Yes
Avail_Real_Mem_MB               SYSIBM    INTEGER                      4     0 Yes
Used_Real_Mem_Pct               SYSIBM    DECIMAL                     31     1 Yes
Avail_Real_Mem_Pct              SYSIBM    DECIMAL                     31     1 Yes
Page_Faults                     SYSIBM    INTEGER                      4     0 Yes
Page_Reclaims                   SYSIBM    INTEGER                      4     0 Yes
Page_Ins                        SYSIBM    INTEGER                      4     0 Yes
Page_Outs                       SYSIBM    INTEGER                      4     0 Yes
Page_In_Reqs                    SYSIBM    INTEGER                      4     0 Yes
Page_Out_Reqs                   SYSIBM    INTEGER                      4     0 Yes
Page_In_KB_S                    SYSIBM    INTEGER                      4     0 Yes
Page_Out_KB_S                   SYSIBM    INTEGER                      4     0 Yes
Page_In_1Min                    SYSIBM    INTEGER                      4     0 Yes
Page_In_5Min                    SYSIBM    INTEGER                      4     0 Yes
Page_In_15Min                   SYSIBM    INTEGER                      4     0 Yes
Page_In_60Min                   SYSIBM    INTEGER                      4     0 Yes
Page_Out_1Min                   SYSIBM    INTEGER                      4     0 Yes
Page_Out_5Min                   SYSIBM    INTEGER                      4     0 Yes
Page_Out_15Min                  SYSIBM    INTEGER                      4     0 Yes
Page_Out_60Min                  SYSIBM    INTEGER                      4     0 Yes
Page_Scan                       SYSIBM    INTEGER                      4     0 Yes
Page_Scan_KB                    SYSIBM    INTEGER                      4     0 Yes
Page_Scan_1Min                  SYSIBM    INTEGER                      4     0 Yes
Page_Scan_5Min                  SYSIBM    INTEGER                      4     0 Yes
Page_Scan_15Min                 SYSIBM    INTEGER                      4     0 Yes
Page_Scan_60Min                 SYSIBM    INTEGER                      4     0 Yes
ARC_Size_MB                     SYSIBM    INTEGER                      4     0 Yes
Net_Memory_Used                 SYSIBM    INTEGER                      4     0 Yes
Net_Memory_Avail                SYSIBM    INTEGER                      4     0 Yes
Net_Memory_Used_Pct             SYSIBM    DECIMAL                     31     1 Yes
Net_Memory_Avail_Pct            SYSIBM    DECIMAL                     31     1 Yes
Non_Comp_Memory                 SYSIBM    INTEGER                      4     0 Yes
Comp_Memory                     SYSIBM    INTEGER                      4     0 Yes
Decay_Rate                      SYSIBM    INTEGER                      4     0 Yes
Repaging_Rate                   SYSIBM    INTEGER                      4     0 Yes
Pages_Read_per_Sec              SYSIBM    INTEGER                      4     0 Yes
Pages_Written_per_Sec           SYSIBM    INTEGER                      4     0 Yes
Paging_Space_Free_Pct           SYSIBM    INTEGER                      4     0 Yes
Paging_Space_Used_Pct           SYSIBM    INTEGER                      4     0 Yes
Paging_Space_Read_per_Sec       SYSIBM    INTEGER                      4     0 Yes
Paging_Space_Write_per_Sec      SYSIBM    INTEGER                      4     0 Yes

  56 record(s) selected.

these 7 records are what will be visible to the user in the TEP GUI panel.


On the ITPA side this is what was configured.




--

Now, what if I change the ITPA to change the forecast granularity from Hourly to Daily ? will it change the TEP GUI measurement count ? to number of days.
Let's see.
Yes, the number of measurements = 2 - ( its; almost 2 days I started the monitoring - the first day - I had it on and off for a bit )

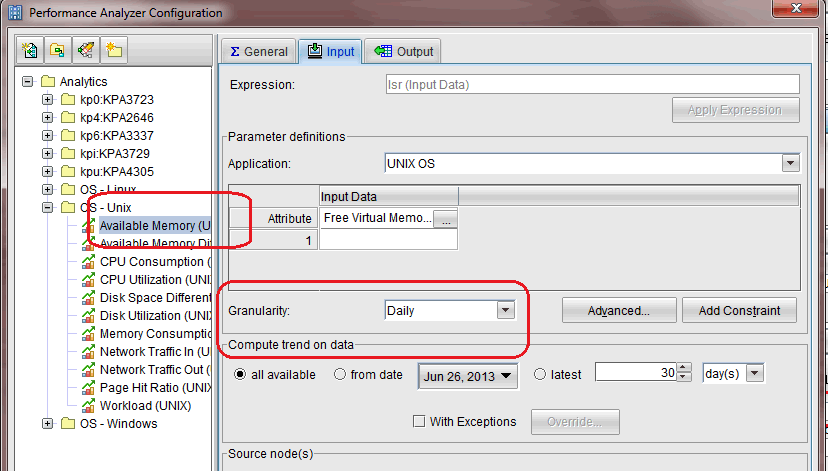

Note, that the ITPA task config changed to Daily.


This tells me that the ITPA configuration from Hourly, Daily, Weekly , Monthly, Quarterly,  will depend on the number of summarized data in the DB2 for UNIX OS Agent.

i.e
Unix_Memory                     ITMUSER         T     2013-06-26-12.19.15.589568
Unix_Memory_D                   ITMUSER         T     2013-06-26-12.20.50.073287 <===  for Daily. ( in this case we have 2 records -since its 2 days since I started it on/off )
Unix_Memory_DV                  ITMUSER         V     2013-06-26-12.20.53.727654
Unix_Memory_H                   ITMUSER         T     2013-06-26-12.20.45.292147  <==  For hourly ( in this case I have 7 entries, one for every 15 mins, and its been close to 2 hrs )
Unix_Memory_HV                  ITMUSER         V     2013-06-26-12.20.49.760437
Unix_Memory_W                   ITMUSER         T     2013-06-26-12.20.54.066615  <==  for weekly
Unix_Memory_WV


Now, lets look at ITPA  Forecast and Status tables.
Memory Overall tables
Mem_Utilization_LT_Fcast        ITMUSER         T     2013-06-26-12.23.33.169192
Mem_Utilization_LT_Status       ITMUSER         T     2013-06-26-12.23.31.573179

Memory Forecast Summarized tables.
Mem_Utilization_LT_Fcast        ITMUSER         T     2013-06-26-12.23.33.169192
Mem_Utilization_LT_Fcast_D      ITMUSER         T     2013-06-26-12.35.23.324907
Mem_Utilization_LT_Fcast_DV     ITMUSER         V     2013-06-26-12.35.25.954956
Mem_Utilization_LT_Fcast_H

Memory Status Summarized tables.
Mem_Utilization_LT_Status_D     ITMUSER         T     2013-06-26-12.35.40.951635
Mem_Utilization_LT_Status_DV    ITMUSER         V     2013-06-26-12.35.43.587620
Mem_Utilization_LT_Status_H     ITMUSER         T     2013-06-26-12.35.37.870105
Mem_Utilization_LT_Status_HV    ITMUSER         V     2013-06-26-12.35.40.716305
Mem_Utilization_LT_Status_M     ITMUSER         T     2013-06-26-12.35.46.
